Motion Magnification

VibVue®

VibVue® visualizes vibration in a machinery, allowing engineers to see subtle machinery vibrations with motion magnification technology.

Product overview

VibVue® visualizes vibration in a machinery, allowing engineers to see subtle machinery vibrations with motion magnification technology.

Motion magnification exceeding 1,000×
Makes microscopic machinery movement clearly visible.
Warp Speed technology
Capable of detecting vibration frequencies beyond 10,000 Hz.
High-sensitivity measurement
Detects displacement as small as 0.1 mil or 0.0025 mm at practical distances.
Advanced analysis tools
Frequency, displacement, velocity, acceleration, overall vibration and phase angle.
Frequency filtering and diagnostics
Waveform and spectrum charts, motion vectors, modal analysis and live diagnostics.
Automated reporting
Export to PowerPoint, Excel, PDF and MP4 formats.

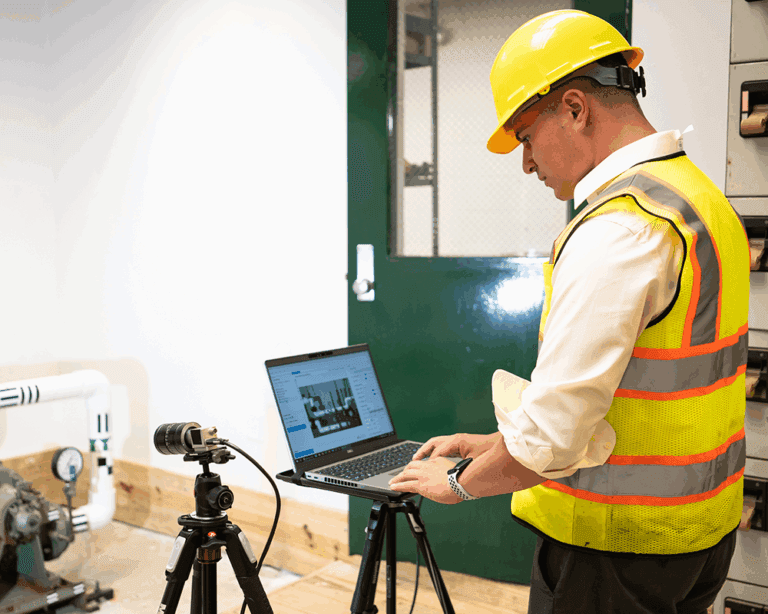

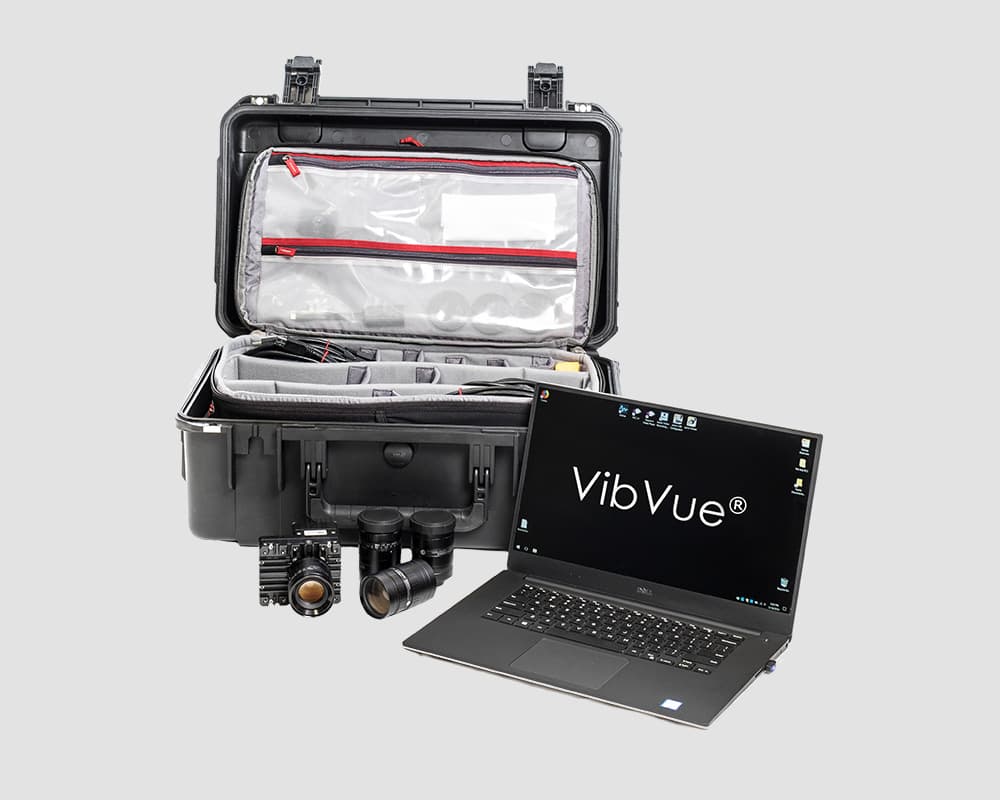

Portable, laptop-based operation
Uses cost-effective camera hardware without requiring on-site internet access.

Makes invisible vibration visible
Normally invisible vibration patterns become easy to see and understand.
Identifies root causes with confidence
Helps engineers pinpoint vibration sources.
Captures a whole machine at once
Covers a machine, structure or piping area simultaneously without installing multiple sensors.
Cuts troubleshooting cost
Reduces the time, labour and cost of vibration troubleshooting and ODS-style investigations.
Speeds up maintenance decisions
Helps reduce equipment downtime and repeat investigations.
Provides clear visual evidence
Easy to communicate to maintenance teams, management and equipment suppliers.

Troubleshooting vibration problems in pumps, motors, compressors, turbines, fans, blowers, engines and gearboxes.
Identifying structural resonance, rocking, swaying and abnormal vibration modes.
Detecting soft foot, looseness, coupling movement and machinery support problems.
Evaluating piping vibration, pipe supports, machinery foundations, platforms and connected structures.
Conducting modal analysis, impact testing and structural dynamic investigations.
Supporting equipment commissioning, acceptance testing and baseline condition assessment.
Performing live diagnostics and condition monitoring of critical machinery.

Software version	VibVue® 4.1
Motion magnification	> 1,000×
Frequency detection range	> 10,000 Hz (600,000 CPM) at full resolution — Warp Speed mode, VibVue® Pro only
Displacement detection threshold	0.1 mil (0.0025 mm) at 10 ft field-of-view

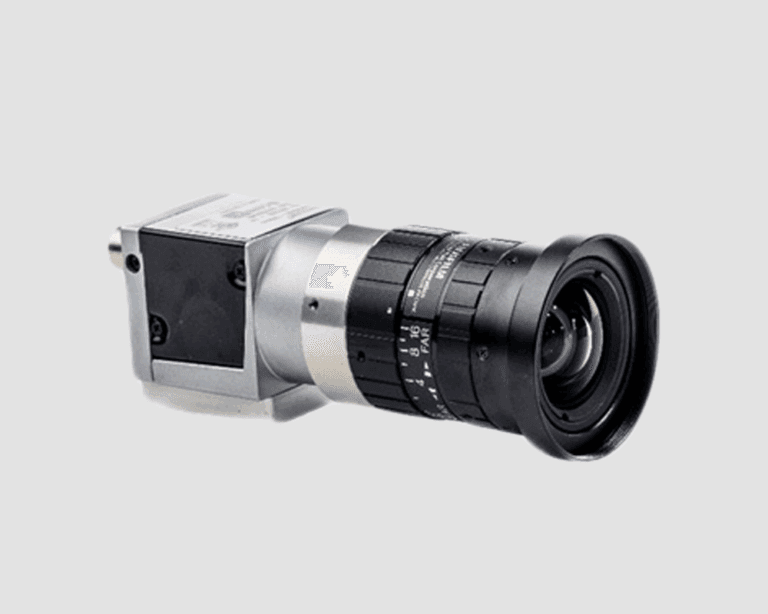

Camera resolution	1920 × 1200 (2.3 MP)
Standard camera frame rate	156 fps @ 1920 × 1200; 312 fps @ 1920 × 600
High-frequency camera frame rate	1480 fps @ 1920 × 1080; 3290 fps @ 640 × 480
Camera type	Monochrome or colour

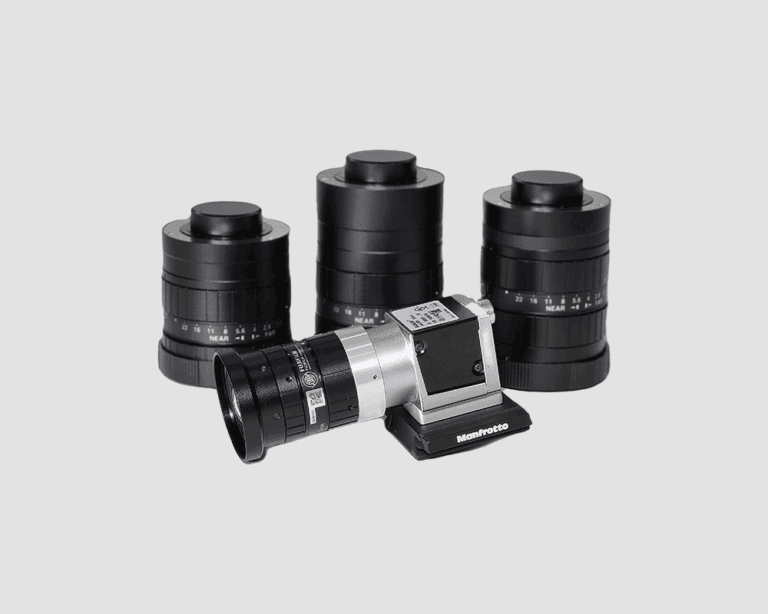

Lens options	6 mm, 12 mm, 25 mm, 50 mm (precision lens set)
Measurement outputs	Frequency, displacement, velocity, acceleration, overall vibration, phase angle
Vibration standard overlays	ISO 10816, Energy Institute
Report export formats	.PPT, .XLSX, .PDF; video export .MP4
Lighting	Flicker-free LED light + stand (optional 22,000 lumen AC-powered high-intensity kit)
Support plan	1 year of software updates, expert project review and technical support

Enquire

Send the asset, the duty and what you are trying to detect. An engineer replies within one working day.
